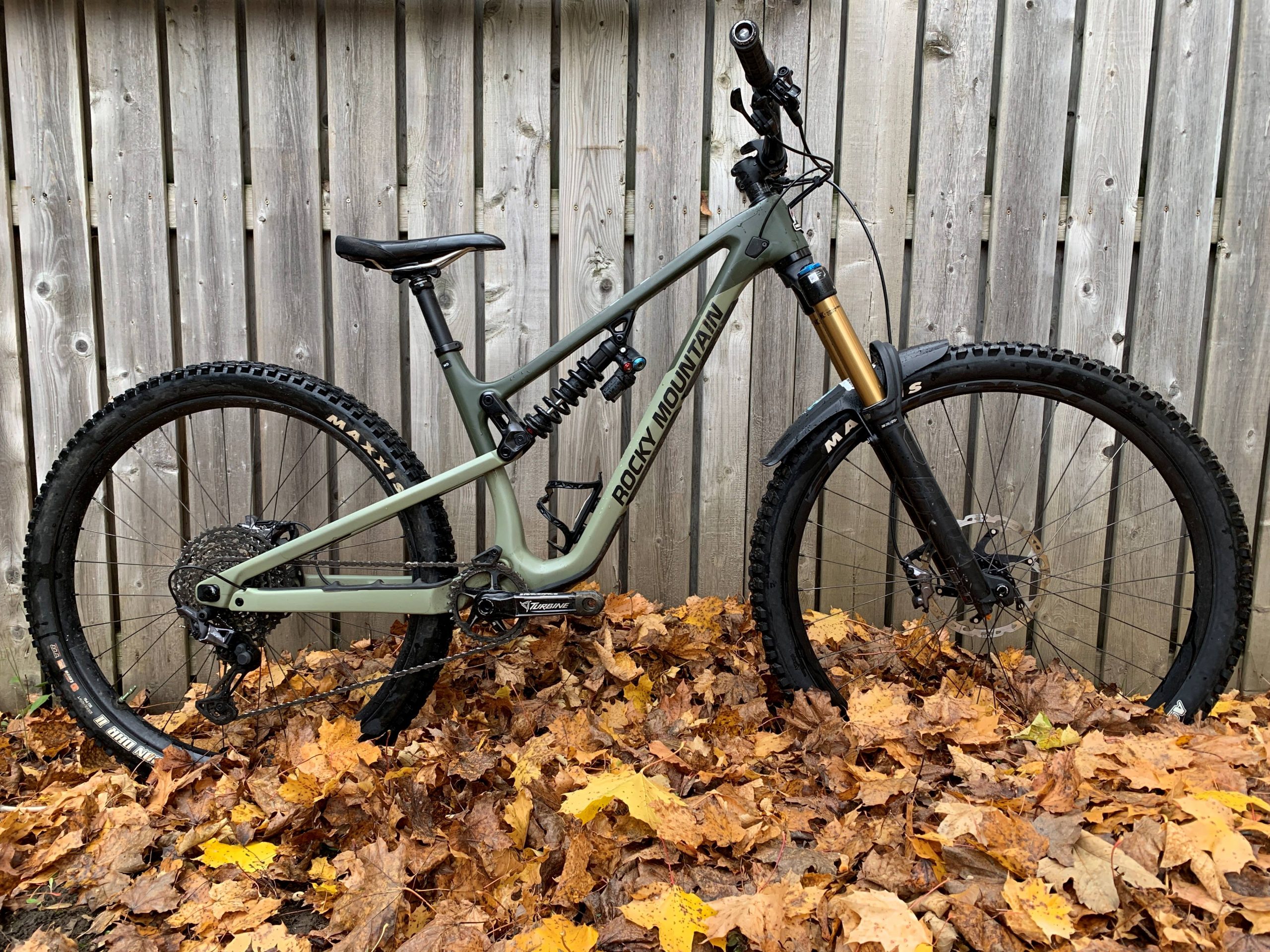

This bike is a shop demo looking for a new home! Ridden for one season as it arrived late 2022. Has been wrapped with RideWrap since day one, mudguard and CushCore not included.
- Frame: SMOOTHWALL™ Carbon. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9™ Adjustable Geometry. 2 Position Axle. 160mm Travel. SMOOTHWALL™ Carbon Rear Triangle
- Fork: Fox 38 Float EVOL GRIP2 Factory Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset
- Front Travel: 170
- Shock: Fox DHX2 Factory | Sealed Bearing Eyelet | 25x8mm F Hardware | SM = 210x55mm | MD – LG – XL = 230x60mm | Size-Specific tune in FAQ
- Rear Travel: 160
- Headset: FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5″ Crown Race
- Stem: Rocky Mountain 35 AM | 5° Rise | All Sizes = 40m
- Handlebar: Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
- Grips: ODI Elite Pro Lock On
- Brakes: Shimano XT Trail 4 Piston | IceTec Metal Pads | F: Shimano RT86 203mm | R: Shimano RT86 180mm
- Shifters:Shimano XT
- Rear Derailleur: Shimano XT
- Cranks & Chainring: Race Face Turbine Cinch | 32T | 30mm Spindle | 170mm Crank Length
- Bottom Bracket: Race Face BB92 30mm
- Cassette: Shimano XT 10-51T
- Chain: Shimano M8100
- Front Hub: Rocky Mountain Sealed Boost 15mm
- Rear Hub: Race Face Trace Boost 148mm | 10° Engagement
- Spokes: DT Swiss Competition 2.0/1.8/2.0
- Rims: Race Face AR 30 | 32H | Tubeless Ready – Tape | Valves Incl
- Tires : F: Maxxis Assegai 2.5 WT 3C MaxxGrip EXO+ Tubeless Ready | R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready |
- Seatpost: Race Face Turbine R (by Fox) Dropper 30.9mm | SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm
- Saddle: WTB Volt Race 142
- Weight: 33.1 LBS|15.04 KGS
